Specifications
Machine Weight – 55 lbs.
Machine Dimensions: 16.5 in. L X 12 in. W X 15 in. H
Maximum Gauges
- Steel…………………………….. 24 GA.
- Aluminum……………………… 0.032
- Aluminum (optional) ……….. 0.040
- Copper …………………………. 20 oz.

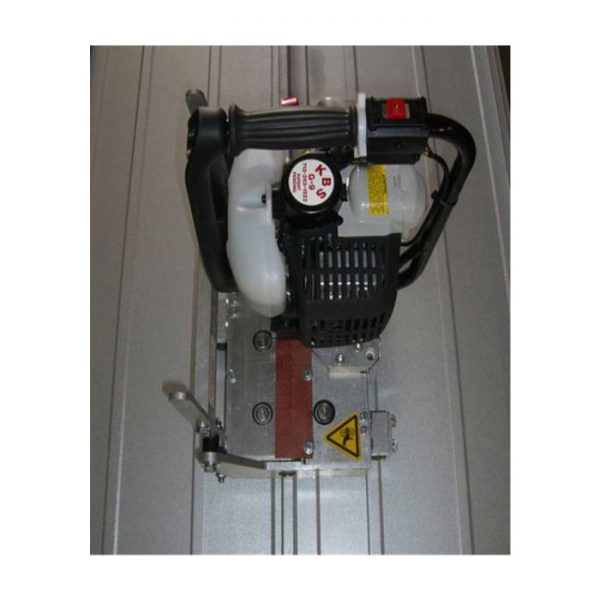

KBS G-9 Gas Powered Seamer
Commercial Double Lock/180 deg. Gas Powered Seamer
- Single & Double Lock
- Four (4) Powered Roll Forming / Drive Stations
- Urethane and Steel Drive Rollers, Steel Forming Rollers
- Weighs 55 lbs
- Adjustable height 1” or 1 1/2”
- For use with painted or unpainted materials
- Seams 30ft per minute
***Machine Images May Display Optional Features Not Included In Standard Pricing***
Contact KBS!
Drive Train
Power Source: Electric Motor, Gasoline Engine
Power Take Off: Spur Gear
Drive / Forming Rollers: Gear/Sprocket/Roller Chain Drive
Seamer Capabilities
1 or 1 1/2 in. Standing Seam – Single Lock = 0.018 to 0.033 in.
1 or 1 1/2 in. Standing Seam – Double Lock = 0.018 to 0.027 in.
2 or 2 1/2 in. Standing Seam – Single Lock = 0.018 to 0.033
2 or 2 1/2 in. Standing Seam – Double Lock = 0.018 to 0.027
2 in. Standing Seam – Ultralok = 0.018 to 0.027
